Series 30 – Multispring Seal Overview
Unbalance Wedge / 'O' Ring Type
Type: 30U and 35U
Series 300 and 35U are multiple spring-unbalance seal with Wedge as secondary sealing member in series 300 and ‘O’ Ring as a sealing member in 35U. Various face material & elastomers can be offer for wide service application. The compact design of seal permits their use in all types of centrifugal pump. As all parts are interchangeable, one can convert series 300 to series 35U by changing only seal ring, secondary packing and mating ring packing. This concept is ideal for stock rationalization.
These Seals can be easily assemble or dismantled through circlip provided & can be change to Balance version by merely changing the carbon face only & can be provided with single, double or tandem arrangement with external seal support systems & devices

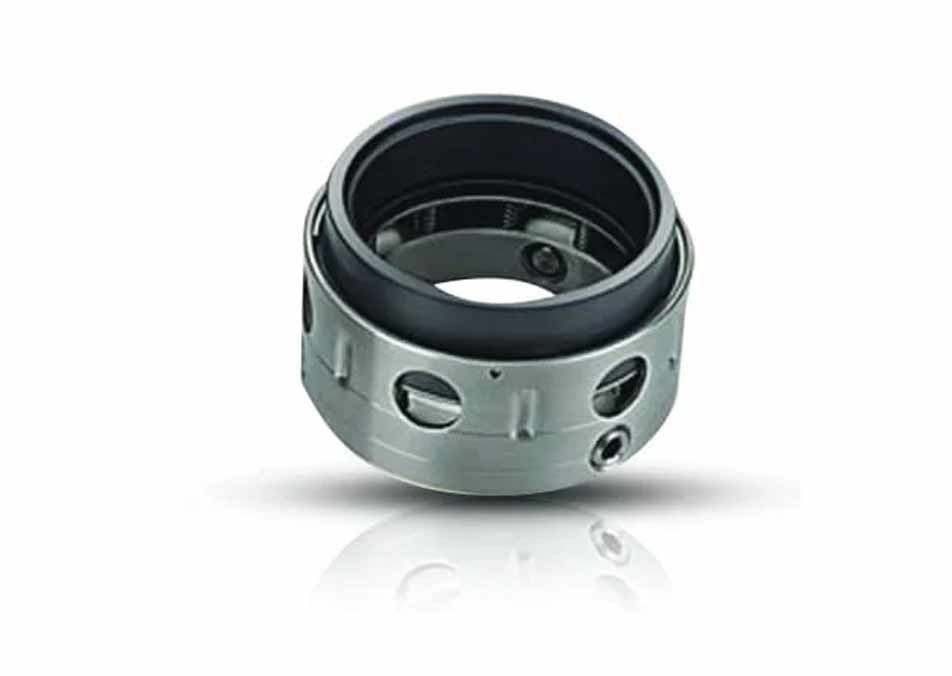

Type 35U
Secondary Seal Material: Viton / Buna / EPDM or Neoprene ‘O’ Ring in order to ensures less shaft fretting due to capacity for flex and roll. ‘O’ Ring Seals are preferred where elastomer are suitable for process fluid.

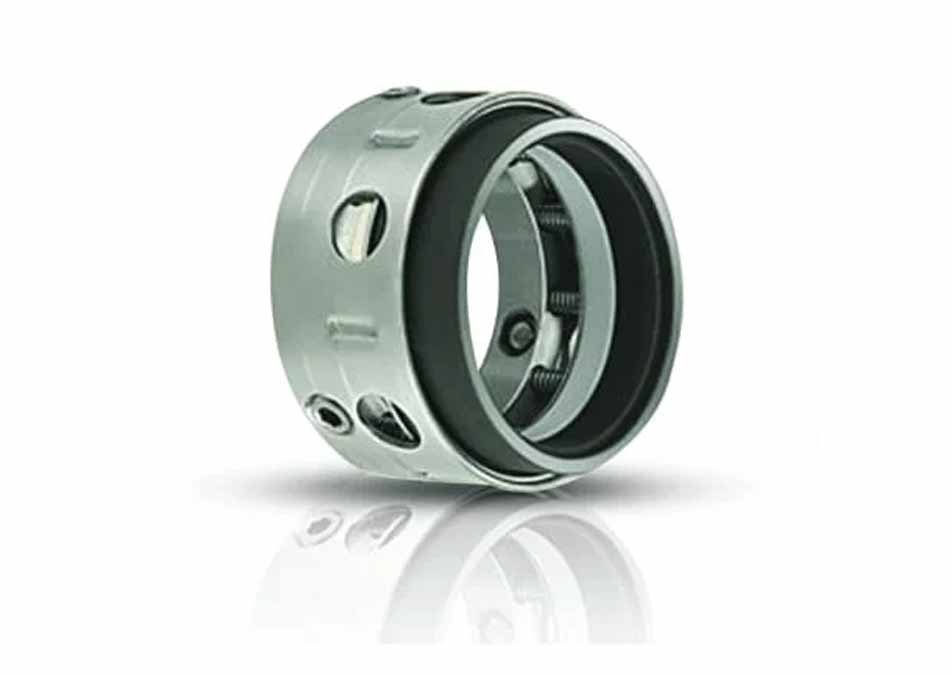

Туре 30U
Secondary Seal Material: PTFE/ GFT Wedge in order to ensures seal operation on high temperature and Chemical Application
Series 30
Designed for clear corrosive or non-corrosive liquids, ensuring precision sealing from low to high-pressure applications.
Applications
- For clear corrosive and non-corrosive liquids
- Operates in low to high-pressure range
MOC for Seal Faces
Rotary: Carbon, GFT, Tungsten Carbide, Silicon Carbide
Stationary: Silicon Carbide, Ceramic, Tungsten Carbide, Stellite
Design
- Internally mounted compact design
- Multispring arrangement ensures uniform loading
- Mechanical locking for positive drive
- Independent of direction of rotation
Hardware Material
Compression Unit: SS 316
Spring: SS 316 / Hast Alloy C
Thrust Ring: SS 316
Grub Screw: SS 316
Operation Parameters
- Pressure: 11 Kg/cm²
- Speed: Up to 25 m/s
- Temperature: Up to 260°C
